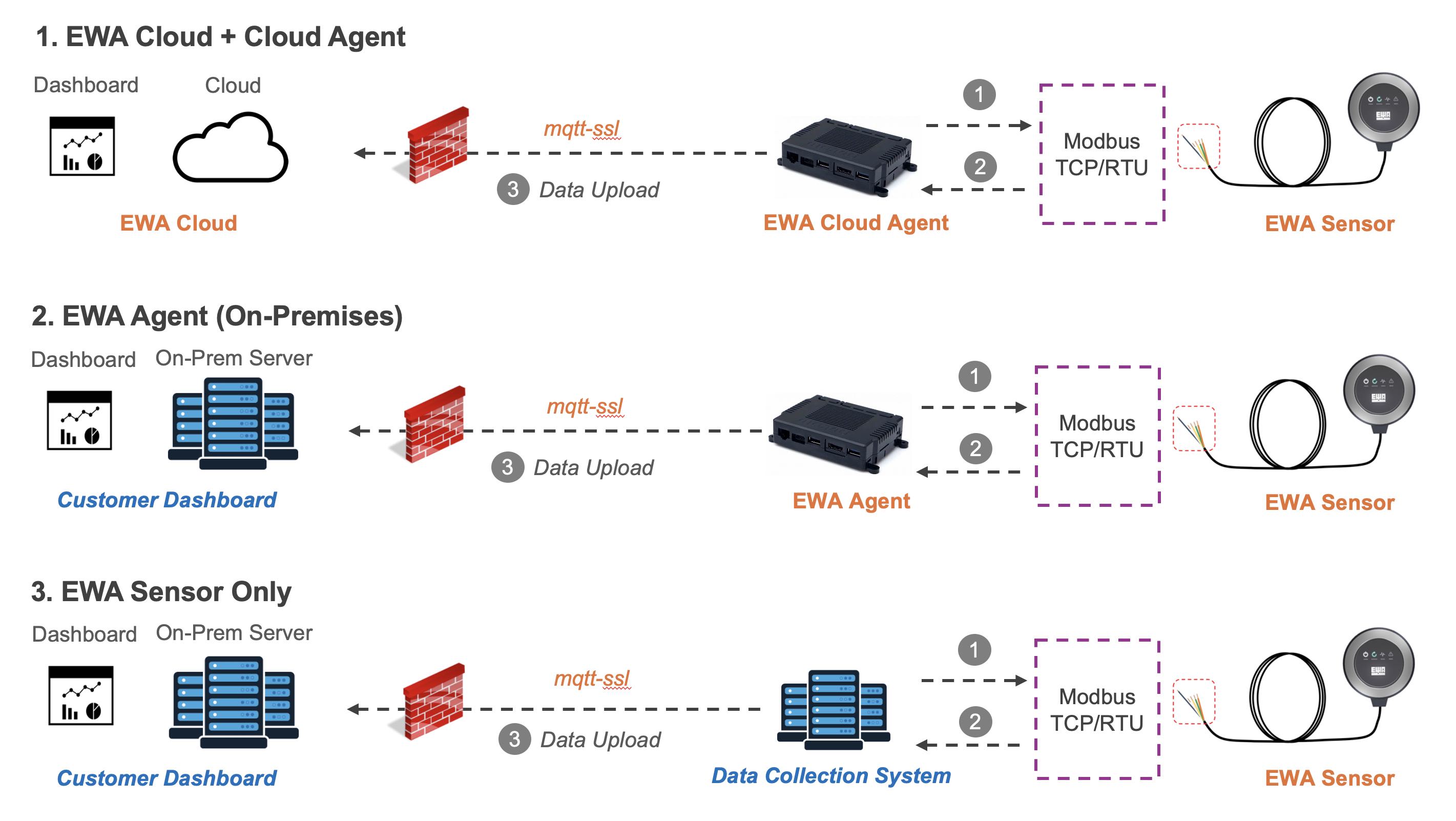

Deployment Options

Flexible Integration for Your Infrastructure

EWA Sensors offer three deployment options to match your existing infrastructure and operational requirements.

EWA Sensor Model E1

Advanced Condition Monitoring Sensor

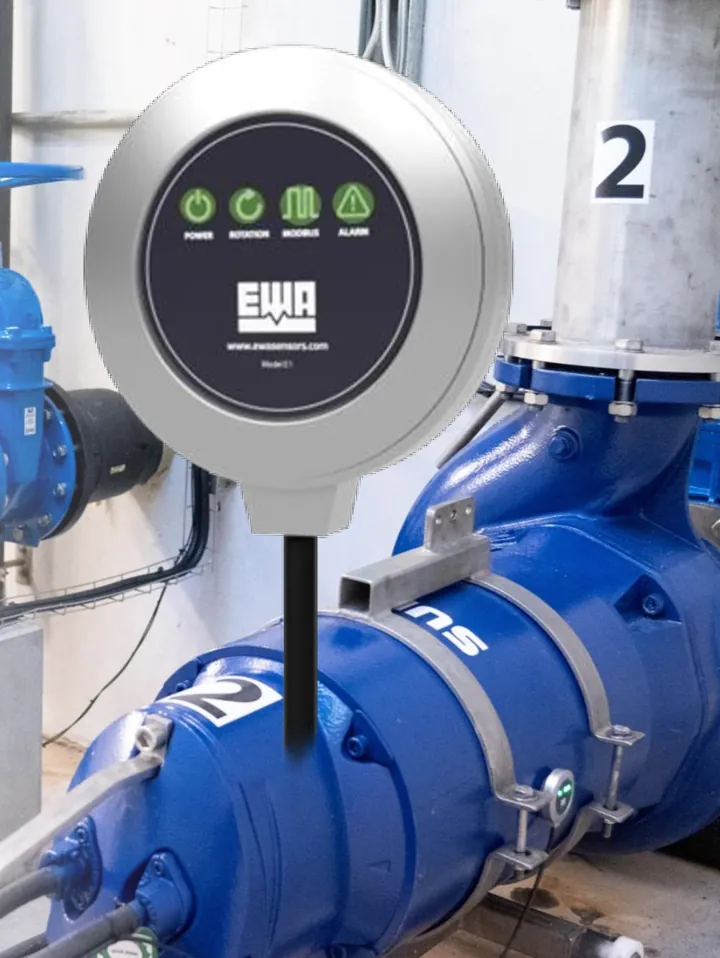

The EWA Sensor Model E1 is designed for Real-Time Health Monitoring of rotating machinery, including pumps, motors, and gearboxes, in both dry and submerged installations.

Key Features

3D Vibration Measurement: Three individual ADXL1002 MEMS sensors from Analog Devices with linear frequency response from DC to 16 kHz
3D Magnetic Field Sensing: Advanced coil design for higher sensitivity and lower noise compared to Hall sensors
Precision Temperature: I²C TMP1075 sensor with 0.0625°C resolution and ±0.25°C accuracy (-55°C to +125°C)
On-Edge Processing: 32-bit ARM Cortex-M7 core performs all analytics inside the sensor
Industrial Design: Stainless steel housing, IP68 sealed, Ø56mm × 14mm

Technical Specifications

Datasheet (PDF) User Manual (PDF)

Vibration Range: 0-200 mm/s RMS

Magnetic Field Range: 0–2.000 μT

Temperature Range: -40 to 110 °C

Power Supply: 12-24 VDC, 60mA, 1/8 Unit Load

Interface: Modbus RS-485 RTU

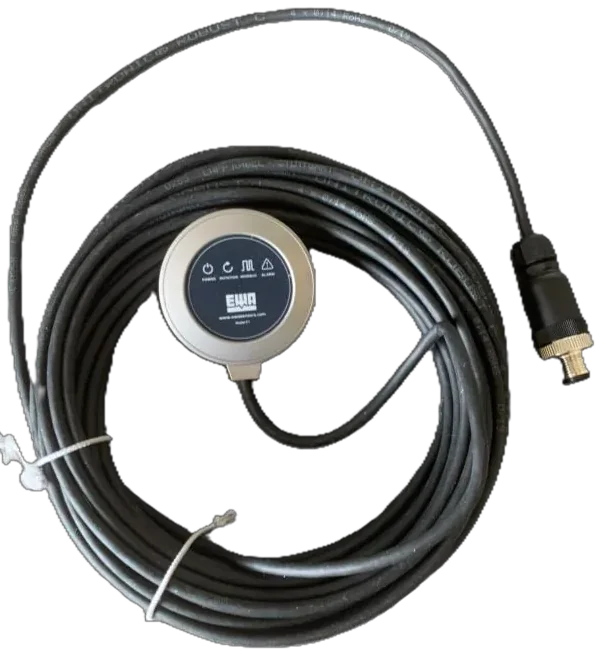

Cable Length: 12 meters

Comprehensive Health Monitoring

Modbus Interface Guide (PDF)

With over 150 parameters calculated every second, the EWA Sensor delivers continuous, real-time monitoring.

Rotational Analysis: RPM (vibration and magnetic), slip detection, rotation direction
Vibration Diagnostics: RMS velocity levels, unbalance detection, bearing fault identification
Mechanical Conditions: Spur gear health, cavitation detection, false brinelling ratio
Operational Metrics: Machine health, operation time, start/stop, temperature

EWA Cloud & Cloud-Agent

Cloud-Based Monitoring Platform

One-Pager (PDF)

The EWA Cloud provides a web-based interface for monitoring machine health across an entire facility from anywhere with internet access. An active EWA Cloud subscription is required.

Cloud Features

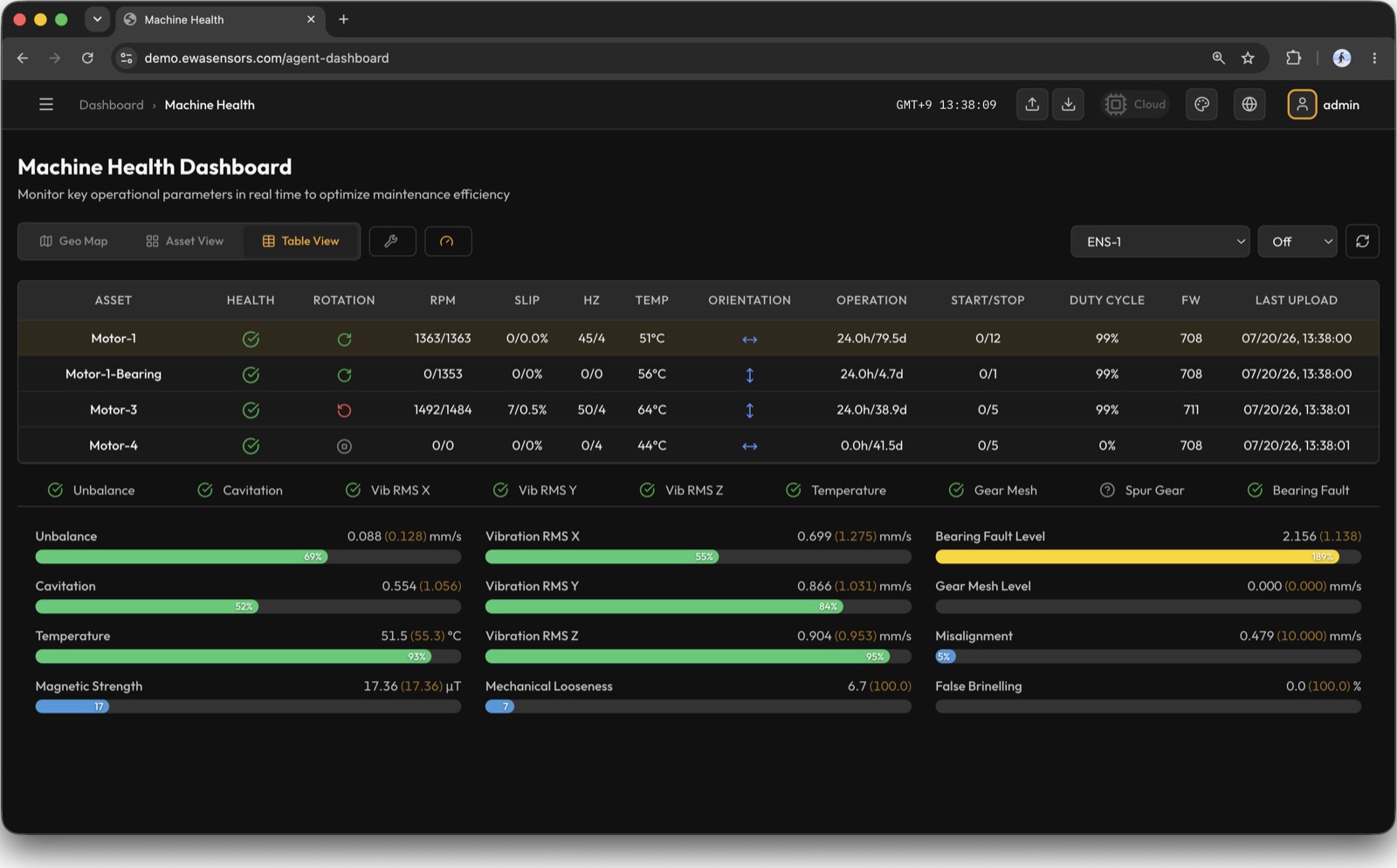

Machine Health Dashboard: Real-time visualization of all connected sensors with customizable views
Historical Trends: Time-based trend analysis with flexible date range selection
Geo-Mapping: Visual location-based monitoring with custom location groups

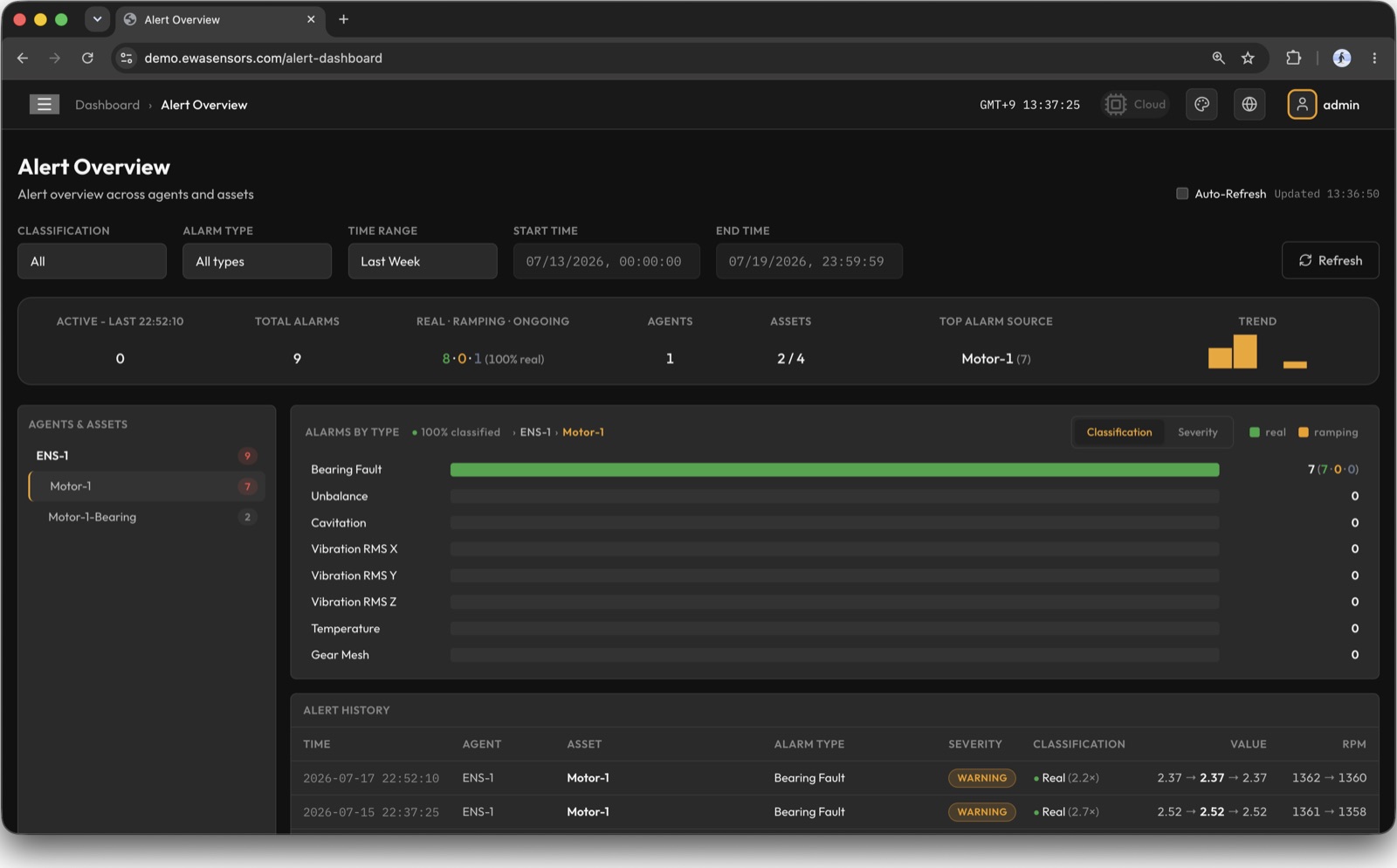

Alert Management: Color-coded status indicators (Green, Blue, Orange, Red) for quick assessment
Data Export: CSV download and daily automated backups available
Data Retention: 180-day default storage with optional extensions
Multi-Tenant Support: Role-based access control for enterprise deployments

Agent Gateway M1s (Cloud-Agent)

Processor: Rockchip RK3566, Quad-Core Cortex-A55 @ 1.8GHz

Memory: 4GB LPDDR4

Storage: 64GB eMMC

Network: Gigabit Ethernet, WiFi Dongle (Optional), 4G LTE Dongle (Optional)

Features: Data collection and cloud upload

Installation: Plug-and-play with pre-installed Agent

EWA Agent (On-Premises)

Local Data Collection & Trending

Deploy EWA Sensors on local infrastructure with complete operational control. The EWA Agent provides real-time data collection, historical trending, and visualization—without requiring cloud connectivity.

Agent Features

Modbus Protocol Support: Full support for Modbus TCP and Modbus RTU for read/write operations
Remote Firmware Updates: Update sensor firmware remotely through the web interface
MQTT Integration: Built-in MQTT broker and client for seamless system integration
Local Trending: Store and visualize historical data locally (M2 Gateway)
Web Interface: User-friendly web-based monitoring and configuration

Agent Gateway M2 (On-Premises)

Processor: Rockchip RK3588S2, Quad-Core Cortex-A76 @ 2.3GHz

Memory: 8GB LPDDR5
